พรีซิชั่น แมชชีน คอนโทรล, 1 Aug 2019 CNC Milling คุณภาพแต่ราคาประหยัด จาก Young Tech Advanced Taiwan
BT-40 , Spindle RPM 8,000
Treveling 800 x 500 x 570 mm
Ball screw Dia 32/40/40 mm
Syntec 21MA Controller full Package 10.4 Inch LCD

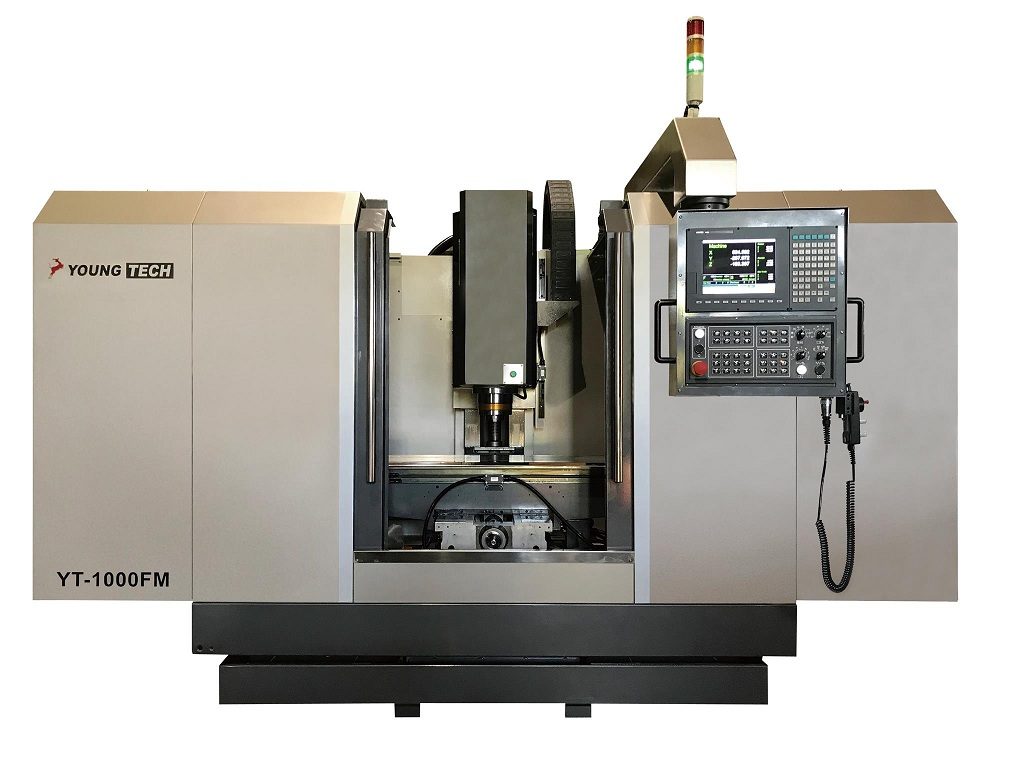

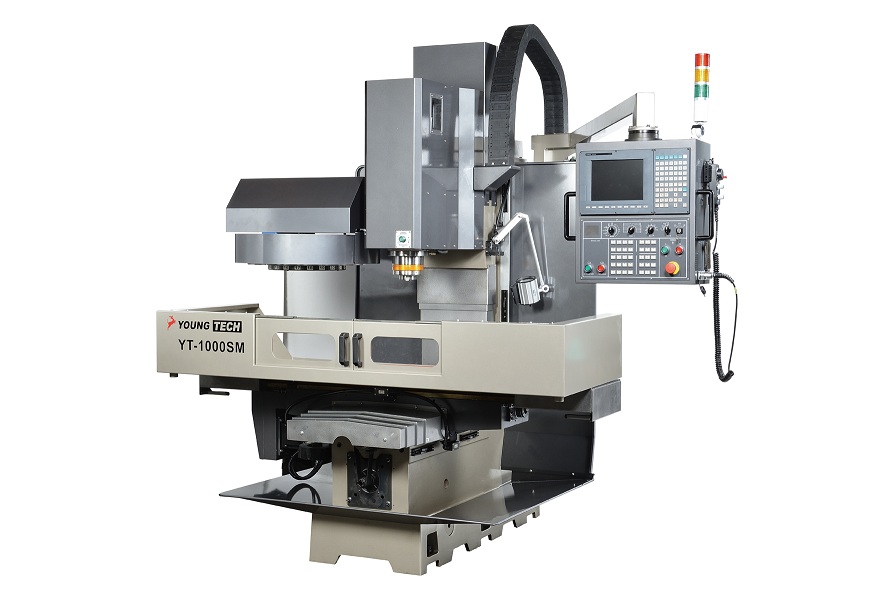

| Item | Unit | YT-1000SM/FM |
| Spindle Nose Taper | ISO40 | |
| Spindle Speed | rpm | 6000 (Opt:8000,10000) |
| Magazine Capacity(OPT) | Armless 20T / Arm Type 24T | |
| Tool Selection | BT/CAT 40 | |
| Max. tool dia. | mm | 100 |
| Max. tool weight | kgs | 7.5 |
| Air cylinder | Dia. 63mm x 255 L | |
| Min. pressure | 5 kgf/ | |
| Table size overall | mm | 1370 x 400 |
| T slot | Inch | 16 x 5 |
| Table load capacity | kgs | 800 |
| Table height | mm | 860 |
| X axis travel | mm | 1000 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 570 |
| Spindle nose to table | mm | 100 – 670 |
| Spindle center to column | mm | 530 |
| Grade | C5 | |
| Pitch | mm | 5/10 |
| X Axis | mm | 32 |
| Y Axis | mm | 40 |
| Z Axis | mm | 40 |
| Rapid transverse | mm/min | 10000 |
| Feed rate | mm/min | 6000 |
| Spindle motor | HP | 7.5 |
| X Axis motor | NM | 4.5 |
| Y Axis motor | NM | 4.5 |
| Z Axis motor | NM | 4.5 |
| Coolant pump | ¼ HP opt(1/2 HP) | |
| Machine height | cm | 225 |
| Floor space | cm | 250 x 312 |
| Machine weight(N.W.) | kgs | 3000 |
| Machine weight(G.W.) | kgs | 3500 |
